Water Pump Motors

Water pumps are one of the most common applications for asynchronous motors. Whether for industrial pumping, boiler water circulation, irrigation, or boosting, the motor must ensure continuous and reliable operation, often in humid or weather-exposed environments.

The three-phase asynchronous motor is the standard solution for industrial and commercial installations. Its robustness, low maintenance, and ability to start under load make it the preferred choice for centrifugal pumps, multi-stage pumps, and booster units. For single-phase installations (isolated sites, agriculture, small commercial), the single-phase motor with a run capacitor offers an effective alternative for lower power ratings.

In hazardous environments (treatment plants, chemical sites, flood-prone areas), an ATEX motor may be required depending on the zone classification.

Selection criteria:

  • Protection rating IP55 minimum (humid environment)
  • Insulation class F
  • Power adapted to the total dynamic head (TDH) and required flow rate
  • Mounting B3 or B5 depending on pump configuration
  • Variable frequency drive compatibility for variable flow applications
  • Energy efficiency IE3 minimum recommended

Gearmotors

The motor-gearbox coupling is a fundamental configuration in mechanical power transmission. The gearbox allows the motor's speed and torque to be adapted to the requirements of the driven machine. This combination is found in a very large number of industrial applications: conveyors, mixers, agitators, winches, industrial doors, or material handling equipment.

The three-phase asynchronous motor is preferred for its ability to deliver high and constant torque, with great long-term reliability. The brake motor is recommended when precise and rapid stopping is necessary at the gearbox output, particularly in lifting or positioning applications. In dusty or explosion-risk environments (chemical industry, food processing, waste treatment), the ATEX motor is essential.

The choice of motor must also consider the reduction ratio, the type of start-up (direct, star-delta, variable speed drive), and the operating cycles.

Selection criteria:

  • High starting torque adapted to the reduction ratio
  • Insulation class F or H
  • Flange compatibility B5 or B14 for direct mounting on gearbox
  • Energy efficiency IE3 or IE4
  • Brake motor if precise stopping is required
  • ATEX if classified environment

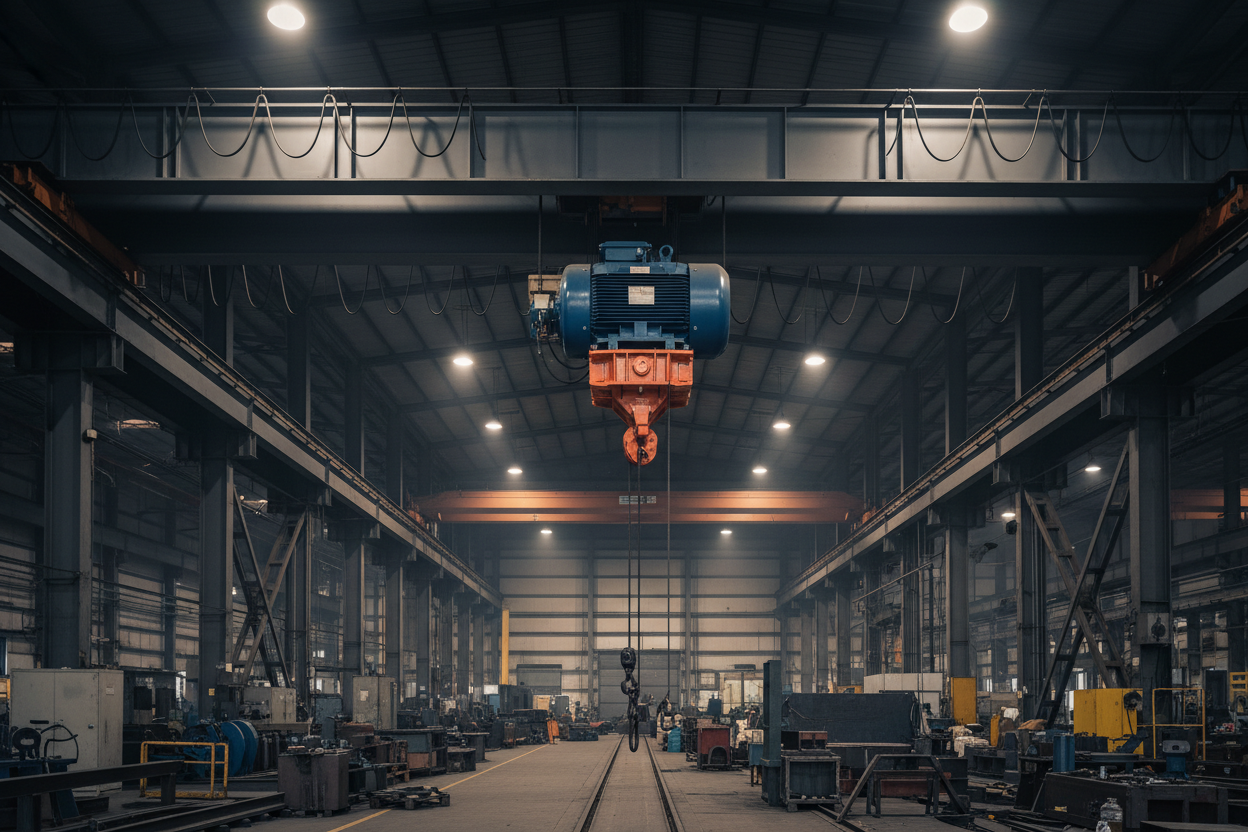

Overhead Crane Motors

Overhead cranes and electric hoists are lifting equipment subjected to particularly severe mechanical and electrical stresses. Start-up and stop cycles are frequent, lifted loads are heavy, and safety requirements are strict. A failure of the braking system can have serious consequences for people and facilities.

The brake motor is essential here. It integrates an electromagnetic brake with power-off braking that ensures immediate and secure stopping as soon as the power is cut, guaranteeing that the suspended load remains in position. The three-phase asynchronous motor is used for translation movements (bridge and trolley) as well as for lifting mechanisms on higher power installations.

Sizing must imperatively take into account the duty cycle (S3, S4), the number of operations per hour, and the utilization class of the lifting equipment.

Selection criteria:

  • Brake motor mandatory for all lifting movements
  • Service class S3 or S4 (intermittent duty)
  • IP55 minimum
  • Braking torque adapted to the maximum load and lifting speed
  • Resistance to shocks and vibrations
  • Certification according to current lifting standards (FEM, ISO)

Fan Motors

Industrial fans provide ventilation, cooling, or air extraction in industrial buildings, tunnels, server rooms, drying processes, or air treatment facilities. They generally operate continuously and at a stable speed, but requirements are evolving towards dynamic flow modulation to optimize energy consumption.

The three-phase asynchronous motor is best suited for these applications, often coupled with a frequency inverter to adjust the rotation speed according to actual needs. This combination allows for significant energy savings, especially in large installations. For smoke extraction fans, chemical processes, or those installed in ATEX zones, the ATEX motor is mandatory and must be certified according to European Directive 2014/34/EU (ATEX).

In applications for ventilating premises or small equipment, the single-phase motor can be used for powers below 3 kW.

Selection criteria:

  • Continuous duty S1
  • IP55 / IP65 depending on the environment (indoor / outdoor)
  • Frequency inverter compatibility (reinforced winding, dV/dt filters)
  • ATEX if classified zone (Ex II 2G or 2D depending on the nature of the substances)
  • Insulation class F
  • Low vibration level for sensitive applications

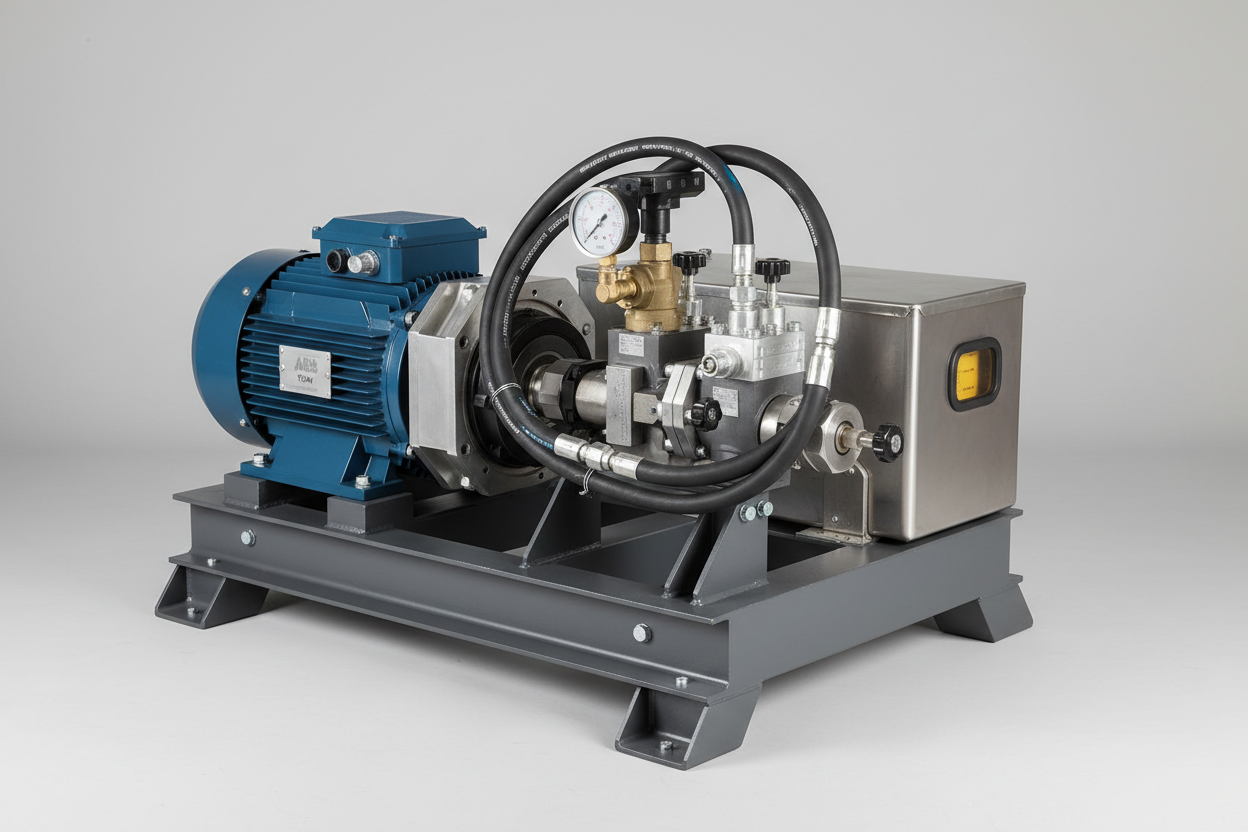

Hydraulic Pump Motors

Hydraulic pumps power the hydraulic power circuits of industrial machinery, presses, public works equipment, and handling equipment. They require a motor capable of providing significant starting torque and maintaining sustained power in steady state, often at a fixed speed.

The three-phase asynchronous motor is the universal solution for driving gear, piston, or vane hydraulic pumps. Starting is generally direct or star-delta depending on the power. In explosion-risk environments—paint shops, solvent storage, petroleum industry—the ATEX motor is essential to prevent any risk of ignition of flammable vapors present in the atmosphere.

Mounting is generally achieved by direct coupling (B5 flange) onto the pump body, which requires optimal alignment precision and mechanical rigidity.

Selection criteria:

  • High starting torque (LD or HD depending on pump type)
  • IP55 minimum
  • B3 or B5 mounting depending on configuration
  • ATEX if flammable vapors or dusts are present
  • IE3 minimum efficiency recommended
  • Resistance to oils and hydraulic fluids (adapted seals and paint)

Vacuum Pump Motors

Vacuum pumps are used in many industrial sectors: vacuum packaging, suction handling, pharmaceutical processes, surface treatment, plastics industry, and medical equipment. They operate continuously with significant thermal constraints due to gas compression.

A three-phase asynchronous motor in S1 service is recommended for these applications, with particular attention paid to motor ventilation and insulation class to withstand prolonged temperature increases. For certain applications requiring precise vacuum level adjustment, coupling with a variable frequency drive optimizes performance and energy consumption. For hazardous environments (solvents, volatile chemicals), an ATEX motor is required.

Selection Criteria:

  • S1 continuous duty
  • F or H insulation class (high temperature rise)
  • IP55 minimum
  • Power sized according to vacuum level and volume to be processed
  • Variable frequency drive compatibility for variable flow applications
  • ATEX if flammable vapors are present

Machine Tool Motors

Machine tools (lathes, milling machines, grinding machines, industrial drills, machining centers) require precise, responsive, and compact motors. Consistent torque over a wide speed range is essential to ensure the quality of machining and the lifespan of the tools. These pieces of equipment are often subject to frequent start/stop cycles and significant load variations.

The three-phase asynchronous motor coupled with a frequency inverter is the preferred solution for spindles and feed axes. It offers great flexibility in speed adjustment while maintaining constant torque. The brake motor is used on axes requiring precise positioned stopping or holding in position during tooling operations. For small capacity machines or workshop equipment, the single-phase motor can be a suitable alternative.

Selection criteria:

  • Constant torque over a wide speed range (with frequency inverter)
  • Brake motor for machining axes and vertical spindles
  • IP54 minimum (chip and lubricant splash protection)
  • Low noise and vibration levels
  • Insulation class F
  • Low rotor inertia for optimal responsiveness

Motors for textile machines

Textile machines (looms, knitting machines, warpers, ring spinning frames, calenders) impose specific constraints: rapid cycles, low vibration levels, high speed regularity, and precise positioning. The slightest irregularity in rotation can cause defects in the fabric or yarn produced.

The three-phase asynchronous motor coupled with a frequency inverter is the ideal solution for these applications, offering fine speed regulation and a rapid response to load variations. The single-phase motor can be used on lower-power machines or in workshops not equipped with three-phase power. Low rotor inertia is a decisive criterion for applications with frequent starts.

In textile workshops where suspended fibers can create an explosion risk (cotton dust, synthetic fibers), an ATEX motor may be required depending on the zone classification.

Selection criteria:

  • Low vibration level (class A or B according to ISO 10816)
  • Frequency inverter compatibility (reinforced winding)
  • IP54 minimum
  • Low rotor inertia for frequent starts
  • Insulation class F
  • ATEX if flammable dust is present in suspension

Compressor Motors

Air compressors (piston, screw, vane, or centrifugal) are among the most energy-intensive equipment on an industrial site. The drive motor must provide high starting torque, withstand continuous operating speeds, and resist the vibrations generated by compression. The energy efficiency of the motor is a major economic concern in this type of application.

The three-phase asynchronous motor is the universal solution for driving industrial compressors, regardless of the compression technology. Starting is direct, star-delta, or via a variable frequency drive depending on the power and constraints of the electrical grid. For compressors installed in explosion-risk zones — paint shops, solvent storage, chemical or petroleum industries — an ATEX motor is mandatory.

Selection criteria:

  • High starting torque adapted to the compressor type
  • Continuous duty S1
  • IP55 minimum
  • ATEX if explosive environment (vapors, dusts)
  • Efficiency IE3 or IE4 to optimize operating costs
  • Adapted cooling: IC411 (self-ventilated) or IC416 (separate forced ventilation)
  • Preheating resistors recommended for cold starts

Crusher and grinder motors

Industrial crushers and grinders are used in quarries, mines, construction, recycling, the food industry, and the chemical industry. These two families of machines share similar mechanical and environmental constraints: violent and repeated shocks, frequent overloads, very dusty environments, high temperatures, and risks of mechanical blockage.

The high-power three-phase asynchronous motor is the reference solution for these applications. Sizing must incorporate a high service factor (1.5 to 2) to account for overloads and starting under load. A brake motor is essential when a rapid stop is necessary for operator safety, particularly on grinders with manual opening for unclogging. In installations processing flammable materials or in explosive dusty environments, an ATEX motor may be required depending on the zone classification.

Selection criteria:

  • Minimum IP65 (total protection against dust and splashes)
  • High starting torque and resistance to significant overloads
  • Brake motor if emergency stop or operator safety is required
  • ATEX if processing flammable materials or in an explosive environment
